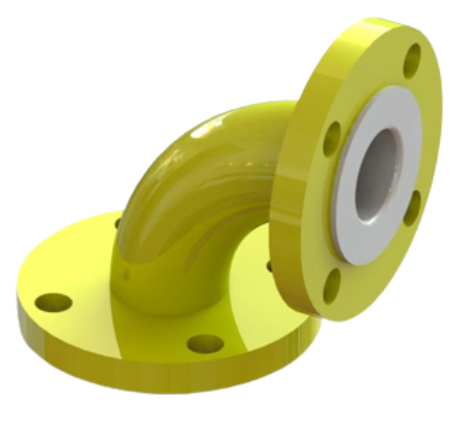

Lined Elbow 90^o

---

Material Specification

Body	As Per ASTM A234 Gr. B/SS304/SS316
Flange	IS 2062/A105/SS304/SS316
Collar	IS 2062/A105/SS304/SS316
Lining	PTFE/ PP/ HDPE/PVDF/ANTISTATIC

Testing and Inspection

Hydro Test	20 Kg/Cm2
Spark Test	15 KVDC

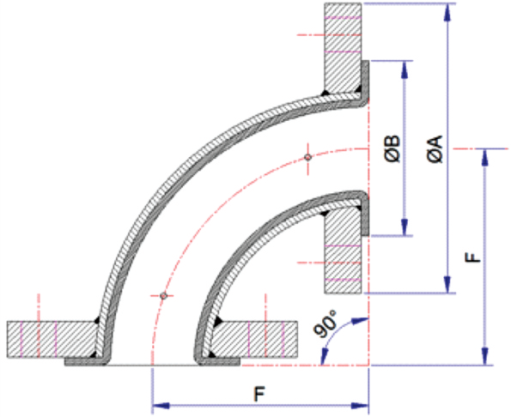

Dimension Specification (mm)

Size	0 A	0 B	F	SCH
25NB	0 108	0 51	89	40
40NB	0 127	0 73	102	40
50NB	0 152.4	0 92	114	40
65NB	0 177.8	0 105	127	40
80NB	0 190.5	0 127	140	40
100NB	0 228.6	0 157	165	40
150NB	0 279.4	0 216	203	40
200NB	0 342.9	0 270	229	40
250NB	0 406.4	0 324	279	20
300NB	0 482.6	0 381	305	20
