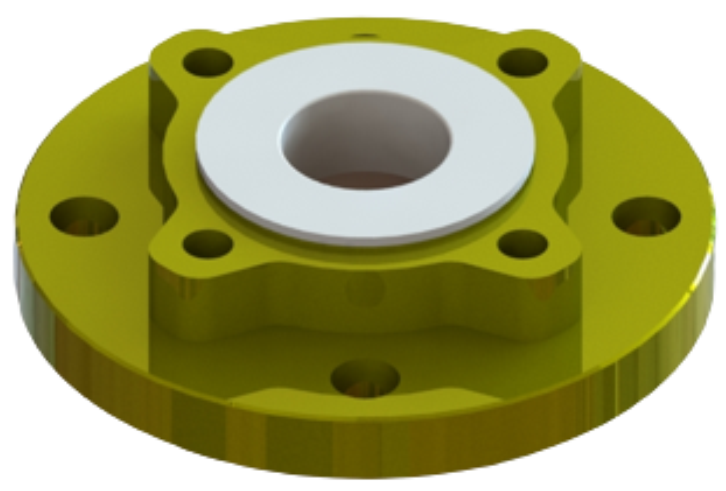

Lined Reducing Flange

---

Material Inspection

Casting	DI Casting As Per ASTM A395
Fabrication	CS/ SS304/SS316
Lining	PFA/FEP/PP/HDPE/PVDF
Lining Thickness	3-6mm

Testing and Inspection

Hydro Test	20 Kg/Cm2
Spark Test	15 KVDC

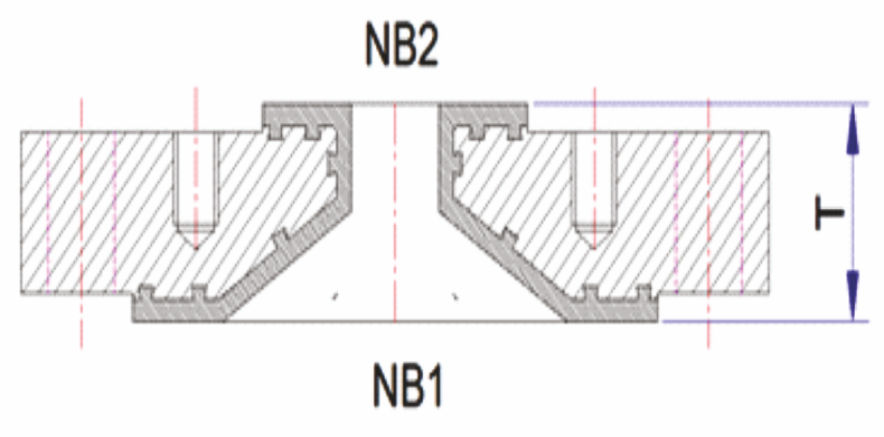

Dimension Specification (mm)

NB 1	NB 2	L
40 NB	25 NB	35
50 NB	25 NB - 40 NB	35
80 NB	25 NB - 50 NB	45
100 NB	25 NB - 80 NB	45
150 NB	25 NB - 100 NB	54
200 NB	25 NB - 150 NB	54
250 NB	25 NB - 200 NB	54
300 NB	25 NB - 250 NB	54
