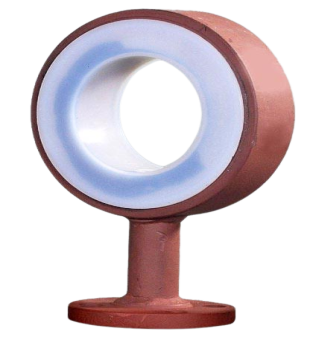

Lined Instrument Tee

---

Material Inspection

Casting	DI Casting As Per ASTM A395
Flange	Made From IS 2062 Plate
Flanges Std.	DIN PN 10/16,BS 10, 300#
Pipe	MS/SS
Body	MS/SS

Testing and Inspection

Hydro Test	20 Kg/Cm2
Spark Test	15 KVDC

Dimension Specification (mm)

Size		0 A	0 B	0 C	0 D	T	F	SCH
40NB	25NB	108	51	73	82	52	102	40
50NB	25NB	108	51	92	100	52	114	40
	40NB	127	73		100	70		40
80NB	25NB	108	51	127	133	52	140	40
	40NB	127	73		133	70		40
100NB	25NB	108	51	157	165	52	140	40
	40NB	127	73		165	70		40
150NB	25NB	108	51	214	219	52	203	40
	40NB	127	73		219	70		40
200NB	25NB	108	51	270	276	52	229	40
	40NB	127	73		276	70		40
250NB	25NB	108	51	324	332	52	279	40
	40NB	127	73		332	70		40
300NB	25NB	108	51	381	390	52	305	40
	40NB	127	73		390	70		40
