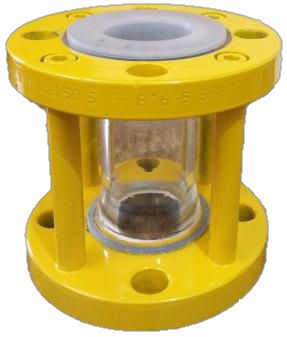

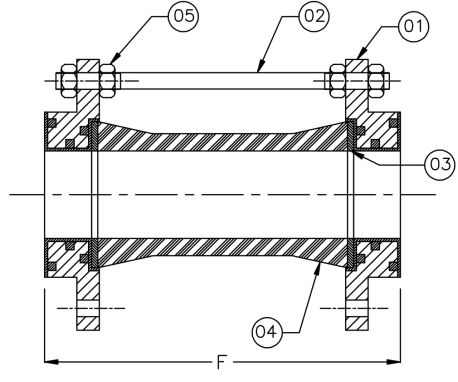

| Flange | MS/SS+PFA/FEP/PVDF/PP/HDPE Lined |
| Rod | MS/SS |
| Gasket | PTFE |
| Indicator | Toughened Glass |
| Fasteners | MS/SS |
| Hydro Test | 20 Kg/Cm2 |
| Spark Test | 15 KVDC |
| Nominal Bore of Pipe | F TO F | O C | R/F | Liner Thickness | Steel Thickness | |
|---|---|---|---|---|---|---|
| Inches | MM | MM | MM | MM | MM | MM |
| 1" | 25 | 127 | 108.0 | 51 | 4.1 | 8.0 |
| 1 1/2" | 40 | 165 | 127.0 | 73 | 4.5 | 8.0 |
| 2" | 50 | 178 | 152.4 | 92 | 4.5 | 9.0 |
| 2.1/2" | 65 | 190 | 177.8 | 105 | 4.5 | 9.5 |
| 3" | 80 | 203 | 190.5 | 127 | 5 | 9.5 |
| 4" | 100 | 229 | 228.6 | 157 | 5 | 11.5 |
| 6" | 150 | 267 | 279.4 | 216 | 5 | 12.0 |
