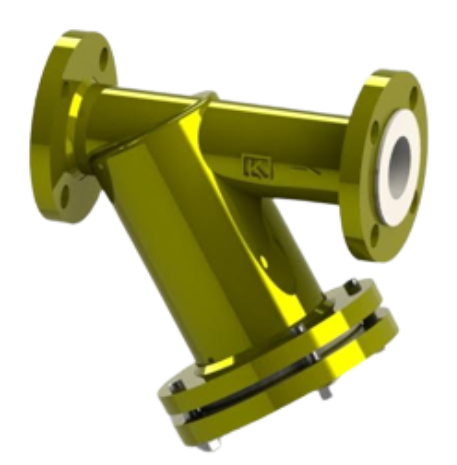

Lined Y Type Strainer

---

Material Inspection

Body	DI/WCB/SS+PFA/FEP/PVDF/PP Lined
Flange	DI/WCB/SS+PFA/FEP/PVDF/PP Lined
Filter Element	PTFE
Fastners	MS/SS

Testing and Inspection

Hydro Test	20 Kg/Cm2
Spark Test	15 KVDC

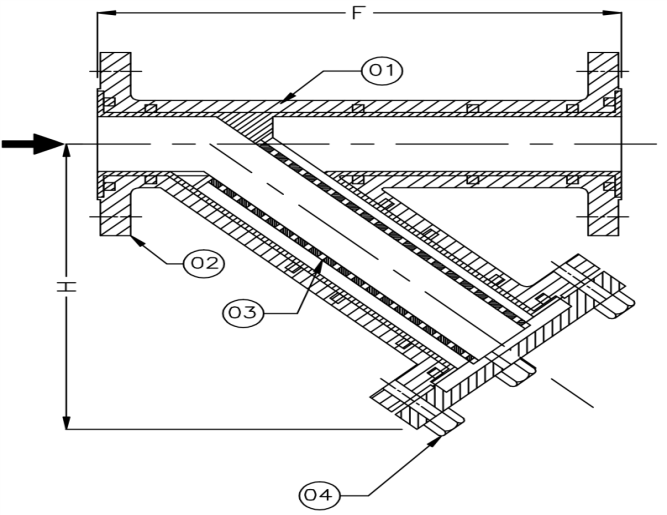

Dimension Specification (mm)

Nominal Bore of Pipe		F TO F	O C	R/F	Liner Thickness	Steel Thickness
Inches	MM	MM	MM	MM	MM	MM
1"	25	127	108.0	51	4.1	8.0
1 1/2"	40	165	127.0	73	4.5	8.0
2"	50	178	152.4	92	4.5	9.0
2.1/2"	65	190	177.8	105	4.5	9.5
3"	80	203	190.5	127	5	9.5
4"	100	229	228.6	157	5	11.5
6"	150	267	279.4	216	5	12.0
