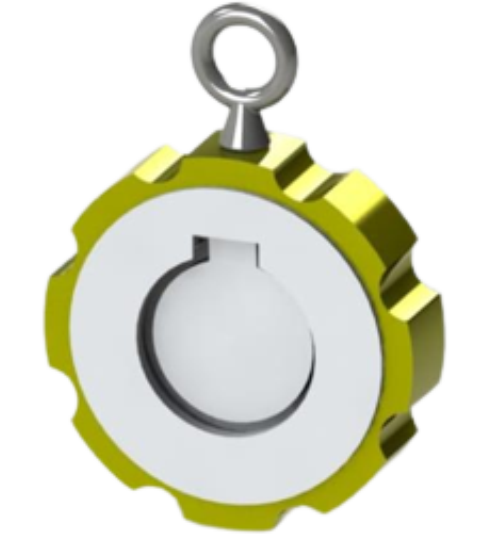

Lined Wafer Type Check Valve

---

Material Specification

Body	DI/WCB/SS
Body Flap	DI/WCB/SS
Lifting Bolt	MS/SS-304/316
lining	PFA/FEP/PVDF/PP
lining Thickness	3-6 mm

Testing & inspection Data

Visual Test	As Per API 598
Hydro Test For shell	20 Kg/cm^2
Hydro Test For Sleeve	10 Kg/cm^2
Pneumetic Test	6 Kg/cm^2
Spark Test	15 KVDC

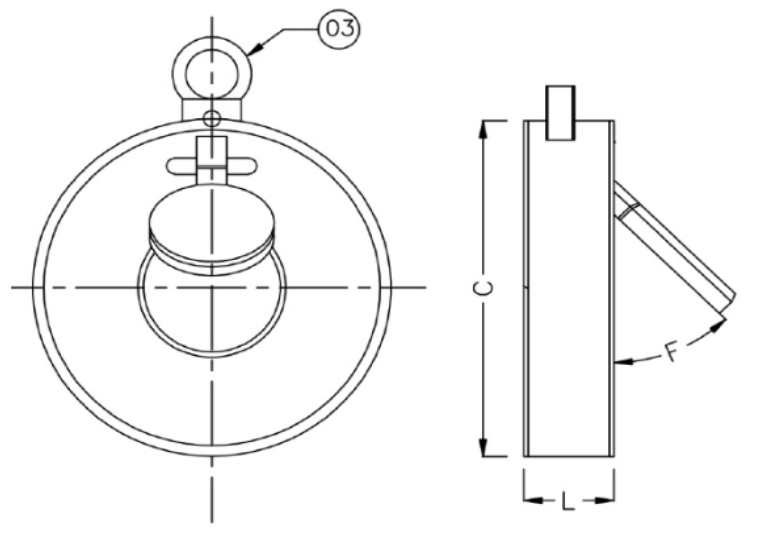

Dimension Specification (mm)

Size	B	C	L	F
50NB	30	101	43	62
60NB	40	121	43	62
80NB	50	133	46	62
100NB	65	171	52	62
125NB	88	195	54	62
150NB	110	219	56	62
200NB	135	275	60	62
250NB	185	336	68	62
300NB	230	406	78	62
