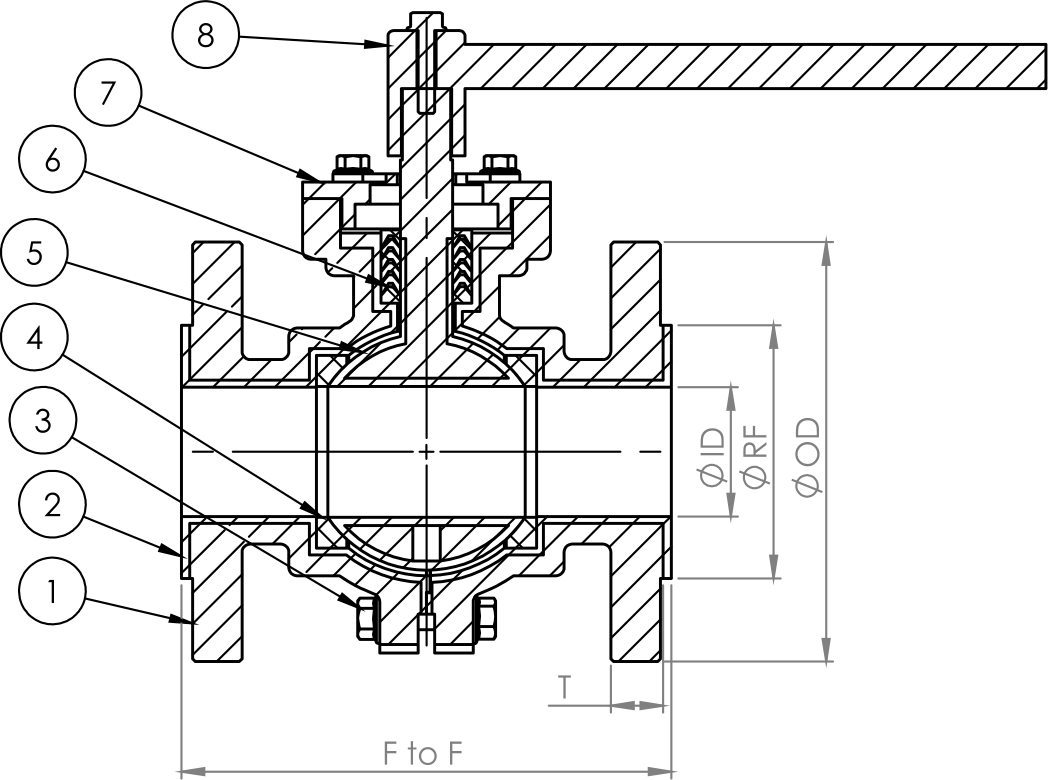

| Body | DI/SGI/WCB/SS-304,316 |
| Lining | PFA/FEP/PP/PVDF/HDPE |
| Fastener | MS,SS-304,316 |
| Seat | PTFE |
| Ball | SGI/WCB/SS-304,316 |
| Wedge Bush | PTFE |
| Cap | WCB/SS-304,316 |
| Handle | WCB/SS-304,316 |
| Visual Check | As Per API 598 |
| Hydro Test For Shell | 20 kg/cm’ |
| Hydro Test For Seat | 10 kg/cm’ |
| Pneumatic Test | 6 kg/cm |
| Spark Test | 15 KVDC |
| Size | 0 OD | 0 ID | F to F | 0 RF | T | 0 PCD | 0H x nos. |
|---|---|---|---|---|---|---|---|
| 15NB | 0 89 | 0 15 | 108 | 0 35 | 11 | 0 60.4 | 0 16 x 4 |
| 25NB | 0 108 | 0 22 | 127 | 0 50.8 | 14.3 | 0 79.2 | 0 16 x 4 |
| 40NB | 0 127 | 0 38 | 165 | 0 73.2 | 17.5 | 0 98.6 | 0 16 x 4 |
| 50NB | 0 152.4 | 0 47 | 178 | 0 92 | 19 | 0 120.7 | 0 19 x 4 |
| 80NB | 0 190.5 | 0 76 | 203 | 0 127 | 24 | 0 152.4 | 0 19 x 4 |
| 100NB | 0 228.6 | 0 96 | 229 | 0 157 | 24 | 0 190.4 | 0 19 x 8 |
| 150NB | 0 279.4 | 0 142 | 267 | 0 216 | 25.4 | 0 241.3 | 0 22.5 x 8 |
| 200NB | 0 342.9 | 0 192 | 292 | 0 270 | 28.4 | 0 298.5 | 0 22.5 x 8 |
